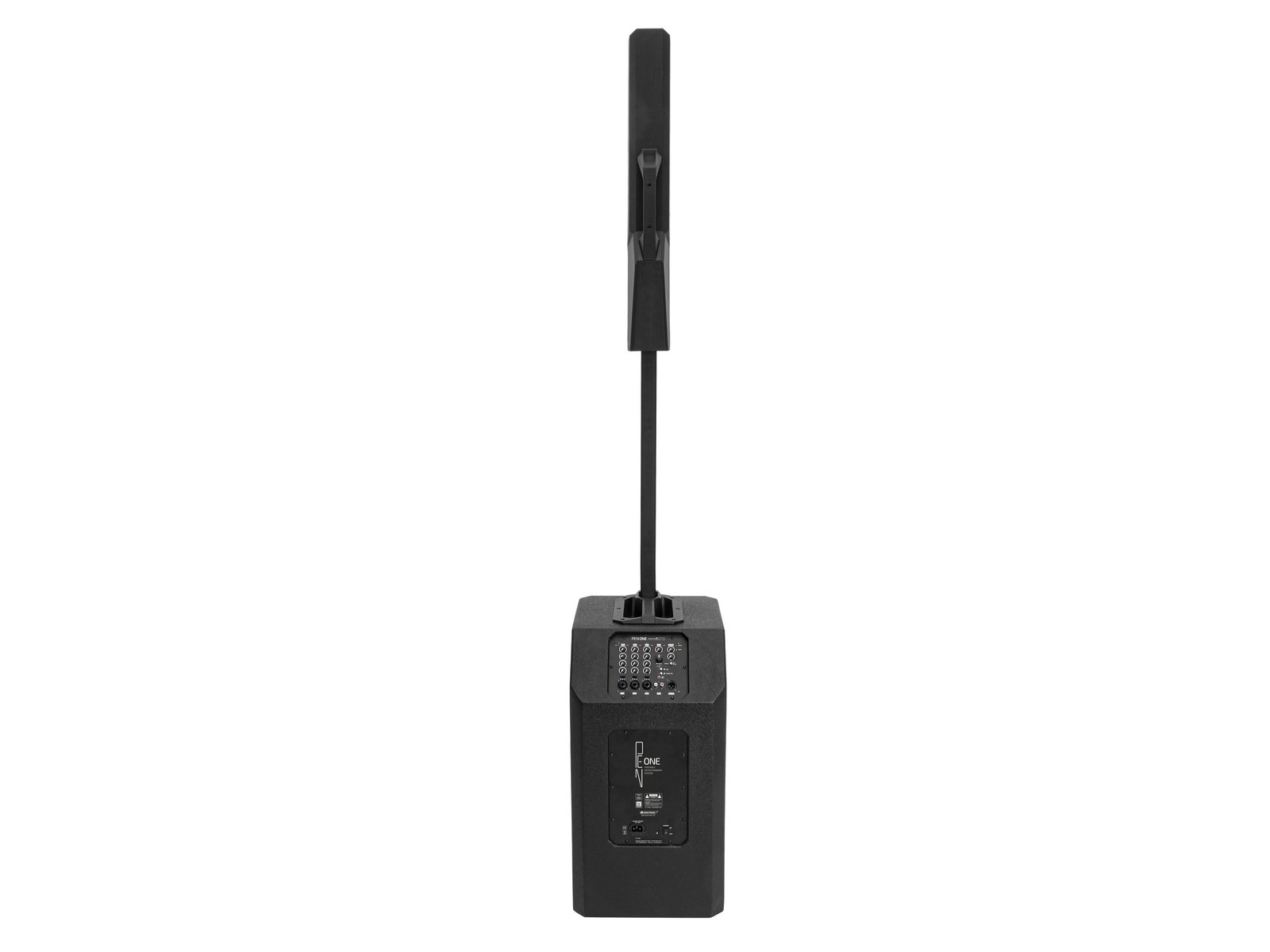

OMNITRONIC PEN ONE Active Column Speaker System
Mobile column PA system with DSP, stereo Bluetooth link, 550 W
€839.00
POWERFUL AND PORTABLE
OMNITRONIC PEN ONE

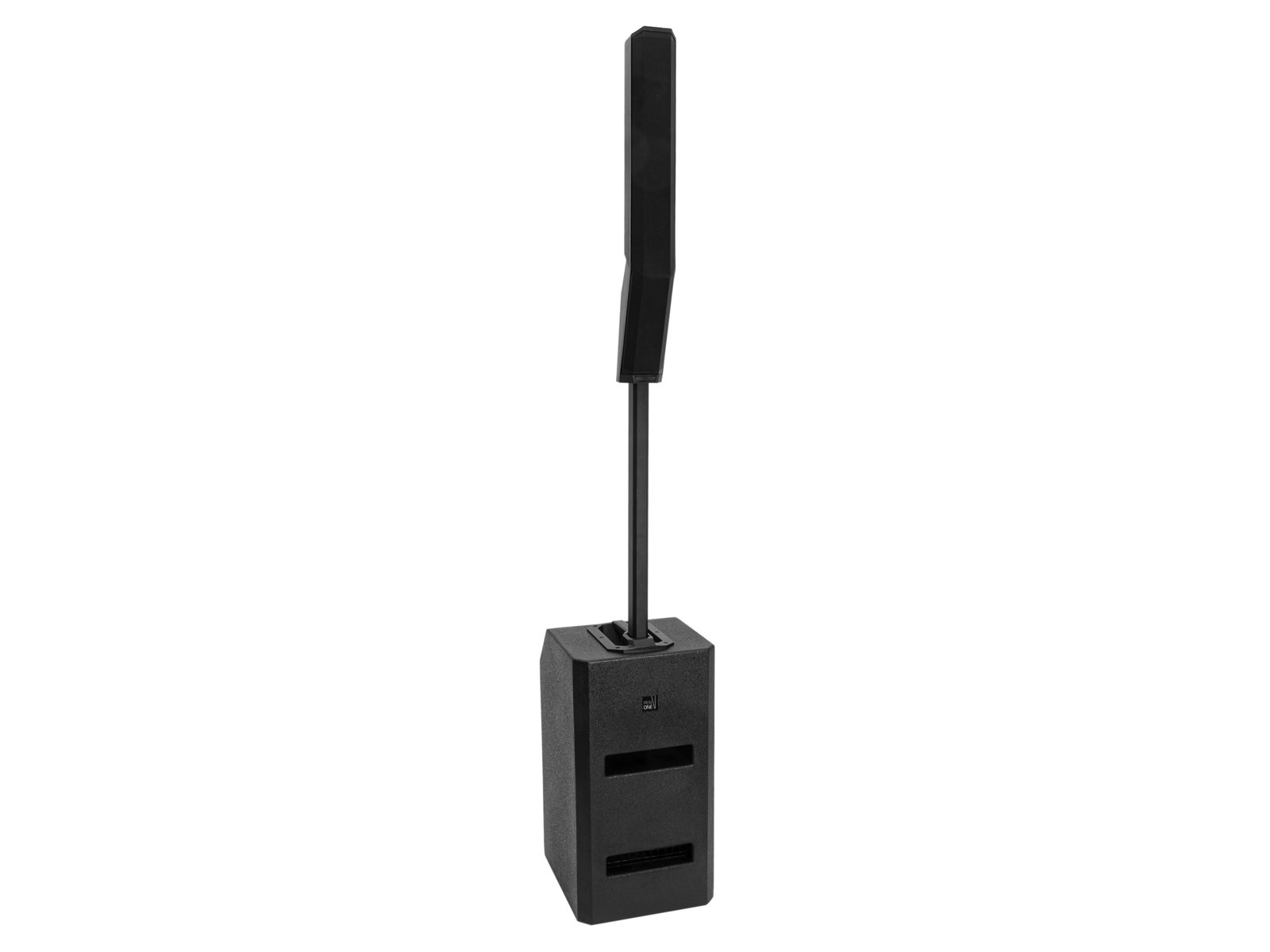

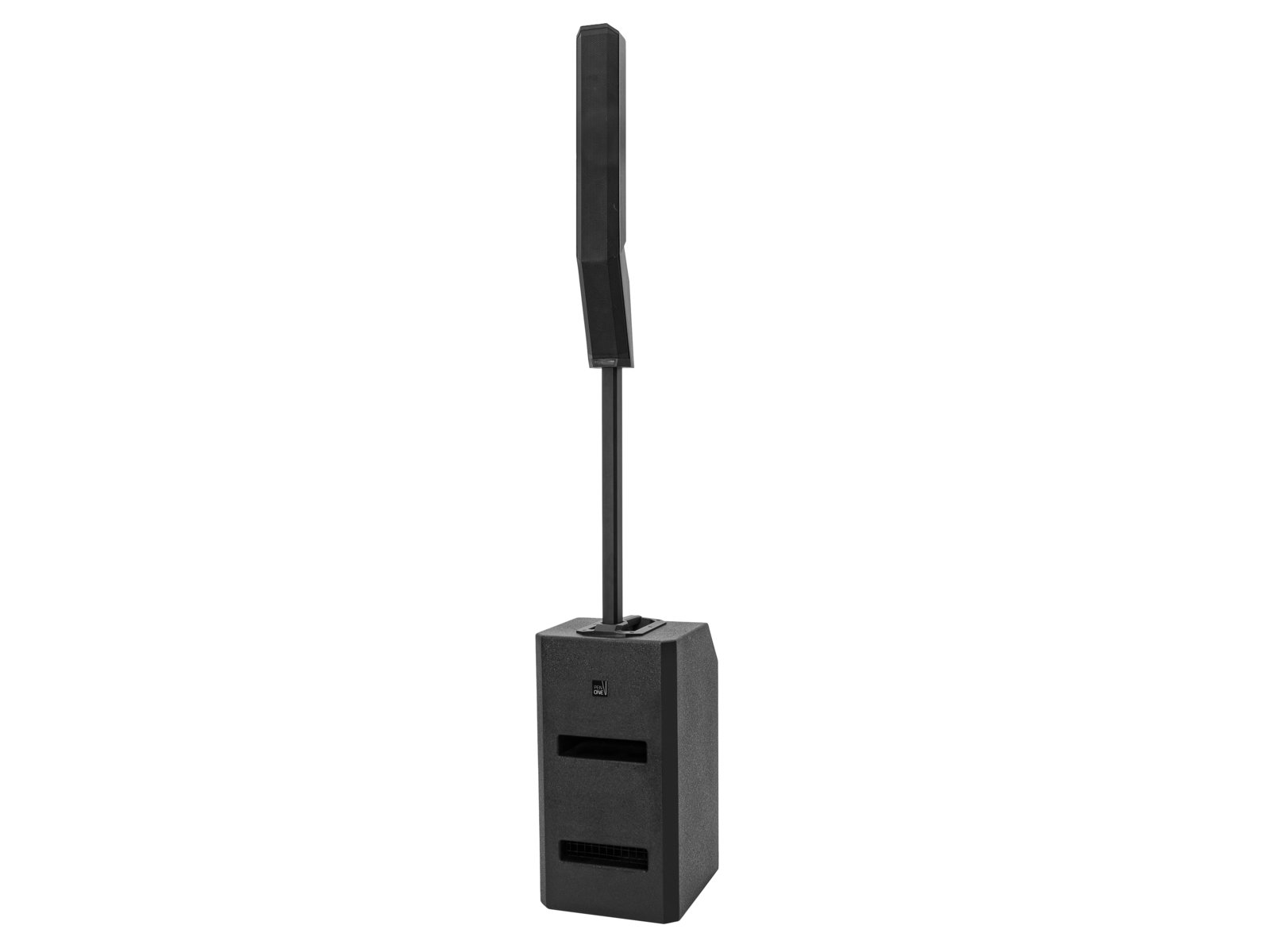

The PEN ONE by OMNITRONIC is a mobile column PA system that impresses with a power output of 550 watts. The transport-friendly PA system offers high sound quality and a wide range suitable for a variety of applications.
THE BEST OF BOTH WORLDS
The PEN ONE is a real powerhouse and yet can be transported effortlessly. With a power of 550 watts, the system delivers a clear and powerful sound that fills even large rooms without any problems. Whether at live performances, presentations or outdoor events – the PEN ONE convinces with a powerful performance. The OMNITRONIC PEN ONE column PA system is versatile and suitable for a wide range of events such as private parties, presentations, conferences and small live performances. With its compact and lightweight design, it is ideal for mobile use and still offers impressive performance and sound quality.
POWERFUL PERFORMANCE
The PEN ONE consists of a powerful 12” bass refl ex subwoofer with Class D amplifi ers (350 W + 200 W) and a column speaker with 8 x 3” drivers. These powerful components provide a balanced sound with clear highs and powerful bass. Whether music, vocals or speech – the PEN ONE brings the sound clearly to the audience. The integrated 4-channel digital mixer allows individual adjustment of the sound settings to adapt the sound to the respective requirements. In this way, music and speech can be optimally mixed. This makes the PEN ONE a versatile companion for a wide range of applications.
SOUND QUALITY
Thanks to the integrated Bluetooth streaming function, you can wirelessly stream music from compatible devices and wow the audience with your favorite music. In addition, the stereo Bluetooth link offers the possibility to connect two PEN ONE systems and, thus, create a harmonious stereo sound. Another highlight is the 96 kHz, 24-bit digital signal processor, which allows precise sound adjustment. Three DSP presets (FLAT, DJ, LIVE) are available to adjust the sound as needed. This allows for optimal tuning to the event in question and ensures first-class sound quality.
FEATURES
Mobile column PA system with DSP, stereo Bluetooth link, 550 W
- Highly portable column PA system with 550 watts power

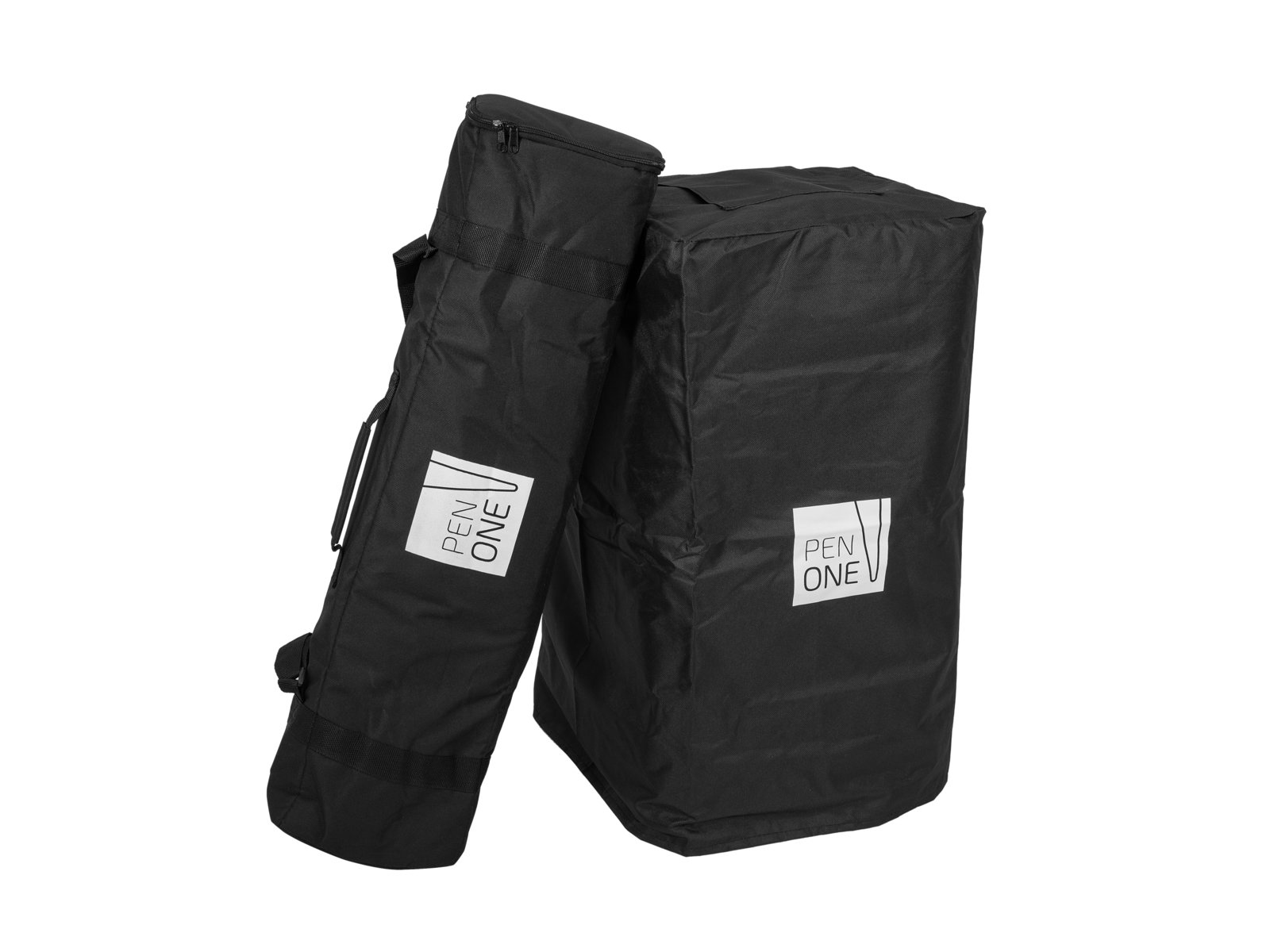

- The article is delivered with practical transport bag
- Excellent sound quality and high transmission range
- Full-featured 4-channel mixer
- Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
- 12″ bassreflex subwoofer with class D amplifiers (350 W + 200 W)

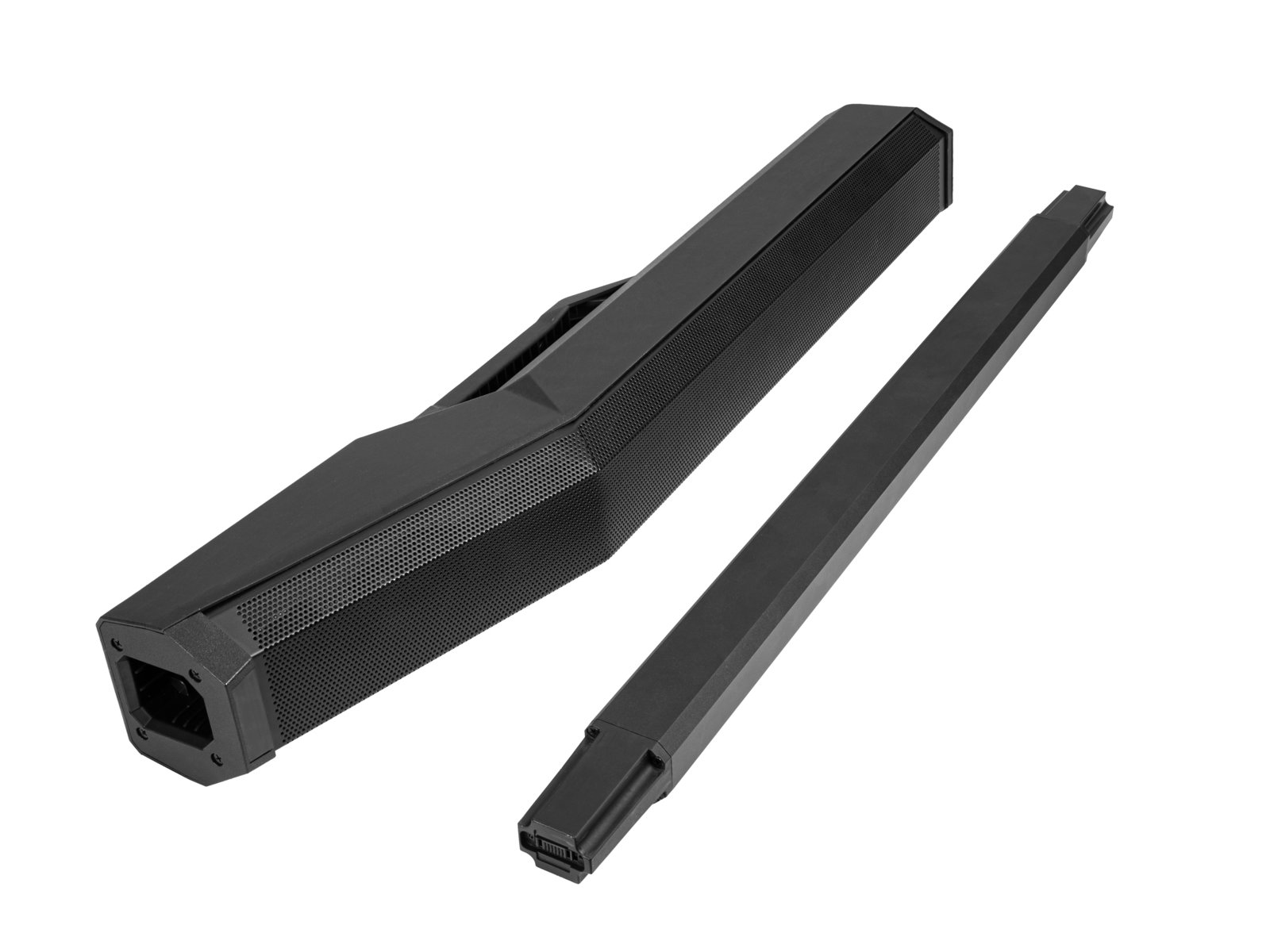

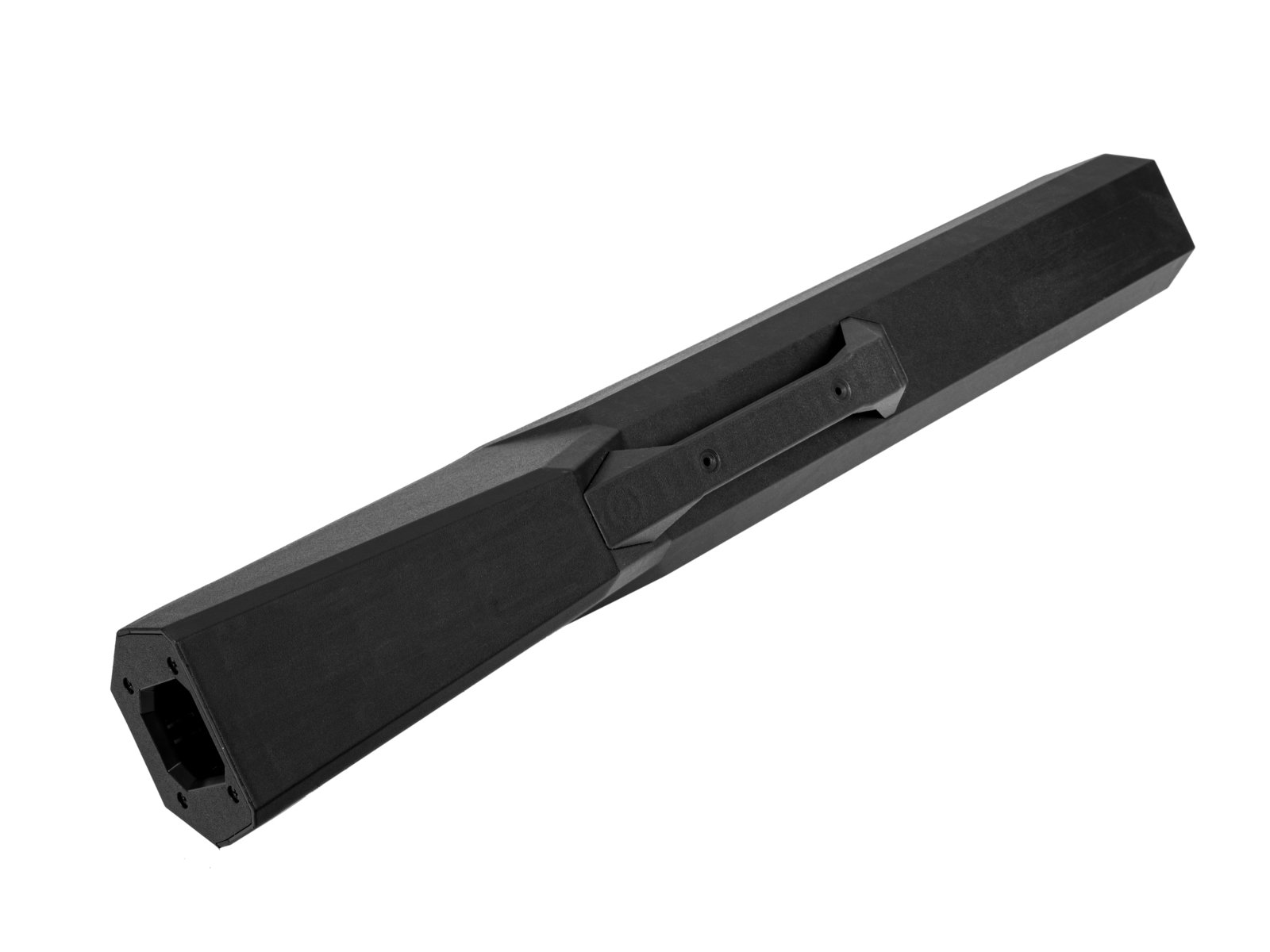

- Column speaker with 8 x 3″ drivers
- Digital signal processor 96kHz, 24 bit
- DSP presets: FLAT; DJ; LIVE
- Control via Bluetooth
- Black metal grille
- Bluetooth: Operating range up to 20m
Package contents
- 1 x bass, 1 x top, 1 x distance tube, 2 x bag, 1 x power cord, 1 x user manual, 1 x declaration of conformity
Specifications
| Brands | Omnitronic |
|---|
TECHNICAL SPECIFICATIONS
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 600 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version (provided) |
| Power: | Rated: 350W RMS LF Rated: 200W RMS HF |
| Number of channels: | 4 |
| Frequency range: | 45 – 20000 Hz |
| Max. SPL: | 125 dB |
| DSP: | Digital signal processor 96kHz, 24 bit |
| DSP presets: | FLAT; DJ; LIVE |
| Dispersion angle: | 120° x 16° |
| Control: | Bluetooth |
| Bluetooth: | Version: 5 with stereo link (TWS) |
| Bluetooth device name: | PEN ONE |
| Circuitry: | Class D |

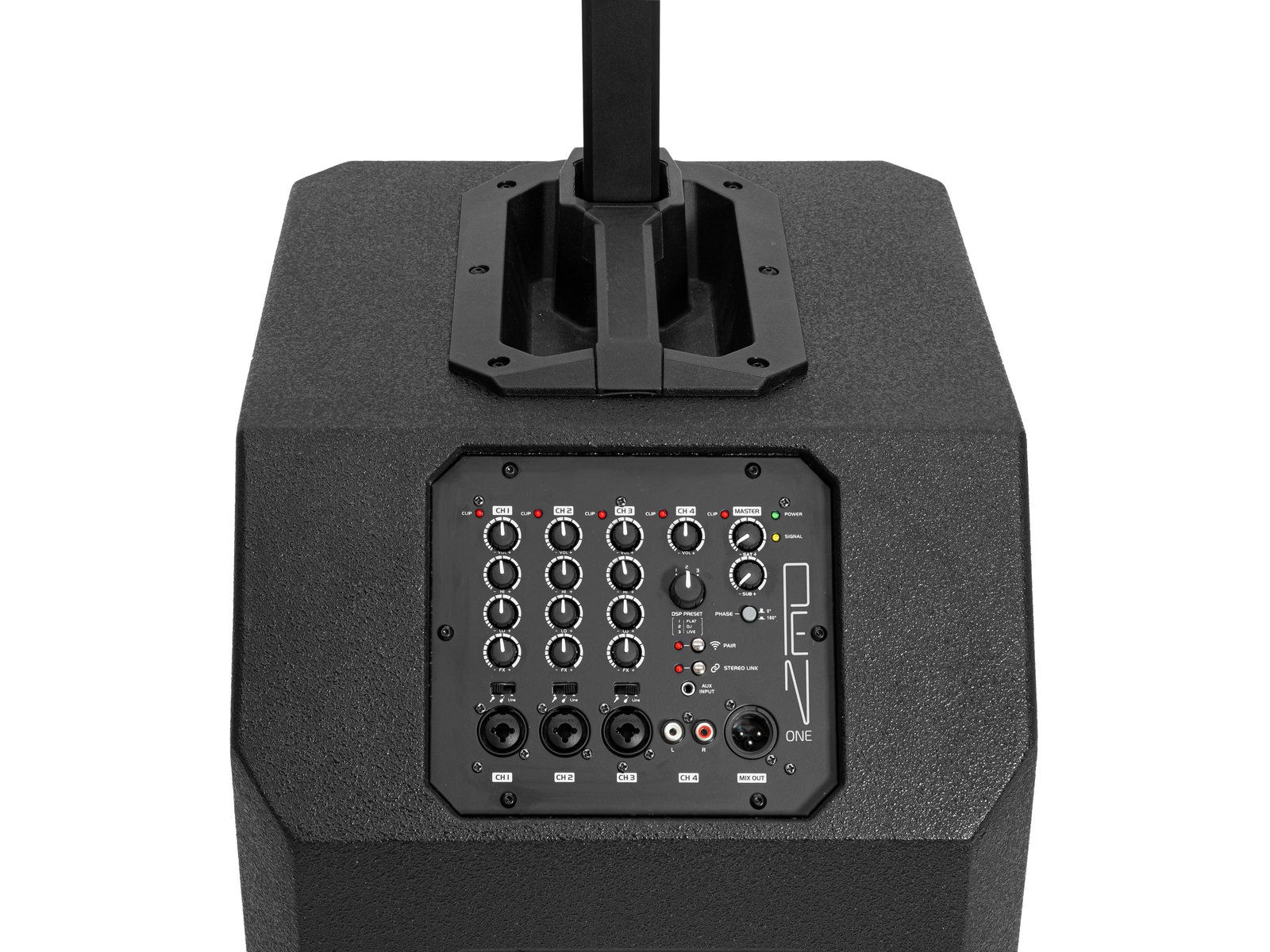

| Control elements: | Power switch, Master control, level control per channel, tone control, connect; Echo effect control, Phase reversal switch, Input sensitivity switch |
| Controls: | Short-circuit; Overvoltage; overheat; limiter |
| Status LED: | Power, signal, clip, pairing, link |
| Connections: | Input: mic/line via 3 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via RCA (F) mounting version Input: line via 3.5 mm jack (stereo) mounting version Output: line via 3-pin XLR (M) mounting version |
| Channels: | Input chanel: 3 x mono with Mic-Line-Hi.Z. switch via Combination socket (XLR/jack), channel control via Rotary dial, 2-band tone control EQ |
| Input channels: | 1 x stereo via RCA or jack plug or Bluetooth, channel control via Rotary dial |
| Speaker: | Woofer (12″) approx. 30 cm with ferrit magnet 8 x full rage loudspeaker (3″) approx. 8 cm with ferrit magnet |
| Type of speaker: | Column speaker |
| Type of construction: | Vented |
| Range: | Bluetooth: range up to 20m |
| Material: | MDF (Medium-density fibreboard), 15 mm |
| Color: | Black |
| Weight: | 28,30 kg |
| Distance tube | |
| Dimensions: | Length: 4,9 cm Width: 3,8 cm Height: 80 cm |
| Top | |
| Dimensions: | Length: 15,6 cm Width: 10,5 cm Height: 78,2 cm |
| Bass | |
| Dimensions: | Length: 42 cm Width: 36 cm Height: 68,7 cm |
PACKAGING UNITS
| PU | EAN | WEIGHT | DIMENSIONS |
|---|---|---|---|
| 1 | 4026397718133 | 33,20 kg | 64cm x 45cm x 85cm |
